Stepper motor driven 11″ Leasdscrew with Linear Controller
When paired with Sherline’s programmable linear controller, this setup provides a complete, self-contained single-axis CNC power feed. The power supply, mounting screws, and anti-backlash nut (not shown) are included. An additional cable is provided for use with a limit switch or for “daisy-chaining” multiple controllers.
Leadscrew & Handwheel Graduations
-
Inch: 1/4-20 leadscrew, 50 divisions
-
Metric: 6.3 x 1 mm leadscrew, 100 divisions
Controller Power Supply
The included power supply is compatible with 110–240 VAC and automatically switches between voltages for use in countries with 220–240V power. (The original version of this power supply was 110 VAC only.)
Single-Axis Slide with Programmable CNC Contoller
Sherline’s single-axis controllers are designed to drive the stepper motor on any individual axis of a lathe or mill—no separate computer or driver is required. Each controller features an integrated computer chip within the keypad/control unit, allowing you to operate the motor directly from the keypad or enter simple programmed sequences—no G-code knowledge needed.
You can program parameters such as direction, travel distance, feed rate, and whether to pause between operations or proceed automatically to the next step. The controller can store up to 40 steps (each with four parameters) in either of two user-defined programs. Multiple controllers can be linked via cable to synchronize movements or can be connected to a larger CNC system using “sense” and “acknowledge” signals to coordinate actions within a CNC sequence.
Stepper Motor Mounting & Drive System
Each stepper motor mount includes dual ball bearings with a preload nut to eliminate endplay. A dampened coupling connects the motor’s 1/4" diameter shaft to the leadscrew. The dual-shaft stepper motor also allows for manual operation using the provided handwheel. The controller employs micro-stepping for precise, smooth movement.
Mounting Options
-
From the Bottom: Four 1/4-20 holes on 2" centers in the base for mounting from below.
-
From the Top: If bottom access is unavailable, use the included four angle clamps that fit into the perimeter groove of the base. Drill and tap the mounting surface for the included 10-32 socket head cap screws. Use all four clamps for maximum stability.
Included Components (Linear Machine Slide with Programmable Controller)
-
Single-axis slide with your choice of 8", 13", or 18" table
-
Linear controller with integrated keypad
-
Power supply
-
NEMA #23 frame size stepper motor
-
1-5/8" handwheel, graduated in .001" increments (inch) or .01 mm increments (metric)
-
Cables
-
Complete instructions
Power Supply
The included power supply operates on 115/120 VAC, 60 Hz (38 W). For regions with 100, 220, or 240 VAC and/or 50 Hz power, a step-down transformer is required. Alternatively, you may supply 24VDC, 1A (1000 mA) from a compatible local power source. Sherline does not offer a 220V power supply or transformer.
Weight Capacity
The slide has a weight capacity of approximately 10 lbs, depending on table length and load placement. For an 18" table, limit off-center loads (at the table end) to no more than 10 lbs. Heavier loads may be supported if centered near the base.
Duty Cycle & Maintenance
Under heavy, continuous use, you may observe wear on the anodized dovetail surfaces after one year (approx. 2080 hours). The slide remains fully functional, but regular lubrication with light oil is recommended to maximize lifespan.
IMPORTANT: Do not use WD-40 for lubrication. It will strip the anodized coating.
CNC Linear Controller with 15″ Leadscrew
This linear controller package includes a stepper motor mount and a 15" leadscrew for use on Sherline lathes that are not CNC-Ready. The stand-alone controller is programmable through its integrated keypad and directly controls the attached stepper motor, which is mounted to drive the lathe’s leadscrew. (A separate kit with a 24" leadscrew is available for 4400-series lathes—P/N 8880.)
An 8-pin mini-DIN cable allows multiple controllers to be connected in a “daisy-chain” configuration. The controllers can signal each other to operate in sequence, enabling complex multi-axis operations without the need for a computer or master CNC controller. The system can also be used in conjunction with existing CNC controllers. Each unit can store two separate programs, with up to 40 steps per program. For each step, you can define travel distance, direction, feed rate, and whether the sequence pauses or advances automatically.
The linear controller can also be daisy-chained with Sherline’s rotary controller (P/N 8700), allowing coordinated rotary and linear motion. This makes it easy to perform sophisticated operations—such as gear cutting—without any CNC programming knowledge beyond the keypad interface.
Advantages of Using a Power Feed:
-
Maintains a constant feed rate for smoother, more consistent surface finishes
-
Minimizes errors from miscounting handwheel revolutions
-
Eliminates physical effort during long cuts or when returning the saddle to the starting position
Programming is simple and intuitive. Stored programs can be run repeatedly at the push of a button with excellent repeatability and accuracy.
Included with the CNC Linear Controller:
-
Linear controller with keypad
-
Power supply
-
#23 frame size stepper motor
-
Cables
-
Stepper motor mount
-
15" leadscrew
-
Dampened coupling
-
Preload nuts
-
Drill guide block
-
Complete installation and operating instructions
Power Supply Compatibility:
The included power supply operates on 110–240 VAC and automatically adjusts for global use (220–240V). Earlier models of this product shipped with a 110 VAC-only power supply.
CNC Linear Controller with 24″ Leadscrew
This CNC power feed includes a stepper motor mount and a 24" leadscrew for use with Sherline lathes that are not CNC-Ready. The stand-alone controller is programmable through its integrated keypad and directly controls the attached stepper motor, which can be mounted to drive the leadscrew of the lathe.
An 8-pin mini-DIN cable allows multiple controllers to be connected in a “daisy-chain” configuration. Controllers can signal one another to operate in sequence, enabling complex multi-axis movements without requiring a computer or master CNC controller. The controller can also be used in combination with existing CNC systems. Each unit is user-programmable with two independent programs of up to 40 steps each. For each step, you can set travel distance, direction, feed rate, and whether the sequence pauses or proceeds automatically.
The linear controller can also be daisy-chained with Sherline’s rotary controller (P/N 8700) to combine rotary and linear movements. This makes it easy to perform advanced tasks—such as gear cutting—without any CNC programming knowledge beyond the keypad interface.
Advantages of Using a Power Feed:
-
Provides a constant feed rate for a smoother, more consistent surface finish
-
Reduces the chance of errors caused by miscounting handwheel revolutions
-
Eliminates physical effort for long cuts or returning the saddle to the starting position
Programming is quick and straightforward. Stored programs can be executed repeatedly at the touch of a button with high precision.
Included with the CNC Linear Controller:
-
Linear controller with integrated keypad
-
Power supply
-
#23 frame size stepper motor
-
Cables
-
Stepper motor mount
-
24" leadscrew
-
Dampened coupling
-
Preload nuts
-
Drill guide block
-
Complete installation and operating instructions
Power Supply Compatibility:
The included power supply operates on 110–240 VAC and automatically adjusts for international use (220–240V). Earlier versions of this product were supplied with a 110 VAC-only power supply.
CNC Linear Controller – X/Y-Axis Upgrade
This kit upgrades the X- or Y-axis of a manual Sherline milling machine or the crosslide of a Sherline lathe for use with a CNC linear controller. It includes a CNC linear controller and all the components required to convert a manual axis to CNC operation. The linear controller comes with a stepper motor mount for machines that are not CNC-Ready.
The stand-alone controller is programmable via its integrated keypad and controls the attached stepper motor, which can be mounted on the mill’s X- or Y-axis or the lathe’s crosslide. (For lathe leadscrew upgrades, click here for 15" upgrade kits or click here for 24" kits.)
An 8-pin mini-DIN cable allows multiple controllers to be connected in a "daisy-chain" configuration. Controllers can signal one another to run in sequence, enabling complex, multi-axis movements without a computer or master CNC controller. The controller also integrates easily with existing CNC systems. Each controller stores two independent programs with up to 40 steps per program. Each step can define travel distance, direction, feed rate, and whether the sequence pauses or continues automatically.
The linear controller can also be daisy-chained with Sherline’s rotary controller (P/N 8700), allowing combined rotary and linear motion for advanced operations—such as gear cutting—without the need for CNC programming skills beyond simple keypad inputs.
Included with the CNC Linear Controller:
-
Linear controller with integrated keypad
-
Power supply
-
#23 frame size stepper motor
-
Cables
-
Stepper motor mount
-
Dampened coupling
-
Preload nuts
-
Drill guide block
-
Complete installation and operation instructions
Power Supply Compatibility:
The included power supply is compatible with 110–240 VAC and automatically adjusts for global use (220–240V). Earlier versions of this product shipped with a 110 VAC-only power supply.
CNC Linear Controller – Z-Axis
This stand-alone controller is programmable from its keypad and controls the stepper motor's function to which it is attached.
An 8-pin mini-DIN cable can be used to connect multiple units in a "daisy chain." The units can signal each other to work in sequence, allowing multiple movements to be accomplished without using a computer or master CNC controller. They can also be used in conjunction with existing CNC controllers. The controller is user-programmable with two separate programs of up to 40 operations each. In each block, you can control distance, direction, speed, and whether the program pauses or proceeds to the next block.
The linear controller can also be "daisy-chained" with Sherline's rotary controller to achieve rotary and linear movement combinations. This makes it easy to set up for relatively sophisticated operations like cutting gears without having to know anything about CNC programming beyond what is entered from these simple keypads.
Using a power feed offers several advantages:- A constant feed rate gives a smoother, more consistent final finish
- The chance of errors due to miscounting handwheel revolutions is reduced
- No physical effort is needed for long cuts or returning the saddle to its starting position after a cut is complete
Programming is quick and simple, and programs are repeated at the touch of a button with high accuracy.
Items included with the CNC Linear Controller:- Linear Controller w/Keypad
- Power Supply
- #23 Frame Size Stepper Motor
- Cables
- Stepper motor mount
- Z-axis Leadscrew
- Dampened coupling
- Preload nuts
- Drill guide block and complete installation and use instructions
The controller power supply is 110-240VAC compatible. It automatically switches from 110V to 240V for countries with 220-240 volt electrical current. The original power supply that we offered with this product was 110 VAC only.
CNC Linear Controller with Stepper Motor
This stand-alone controller is fully programmable via its integrated keypad and directly controls the stepper motor to which it is connected. The stepper motor can be applied to any axis of a CNC-Ready Sherline machine.
An 8-pin mini-DIN cable allows multiple controllers to be connected in a “daisy-chain” configuration. Controllers can signal one another to operate in sequence, enabling complex, multi-axis movements without the need for a computer or master CNC controller. The system can also be used alongside existing CNC controllers. Each controller stores two independent programs, with up to 40 operations per program. For each operation, you can define travel distance, direction, feed rate, and whether the sequence pauses or proceeds to the next step.
The linear controller can also be daisy-chained with Sherline’s rotary controller, enabling coordinated rotary and linear motion. This allows users to easily perform advanced operations—such as gear cutting—without requiring CNC programming skills beyond simple keypad inputs.
Included with the CNC Linear Controller:
-
Linear controller with keypad
-
Power supply
-
#23 frame size stepper motor
-
Cables
-
Complete instructions
Note: To add CNC linear control to an axis on a Sherline machine that does not have a stepper motor mount, see P/N 8850.
Power Supply Compatibility:
The included power supply operates on 110–240 VAC and automatically adjusts for global use (220–240V). Earlier versions of this product shipped with a 110 VAC-only power supply.
36V Closed-Loop Stepper Motor
The 36V stepper motor is a closed-loop motor with an integrated driver, housed in the same NEMA 23 frame as our standard stepper motor. It features built-in LED indicators that display both power and alarm status for easy monitoring.
⚠️ NOTE: The 36V closed-loop stepper motors are sold only as replacement parts for Sherline Accu-Pro machines. They are not available as upgrade components for pre-existing systems.
High-Torque Stepper Motor
Sherline’s high-torque stepper motor features the same NEMA 23 frame size as our standard stepper motor but delivers over 75% more torque - ideal for increased cutting feed rates and better performance on the Z-axis, where it can handle the added weight of the motor and headstock. Note that maximum rapid feed rate remains unchanged.
Important Compatibility Note: Due to the increased torque, these motors require an updated CNC coupler (P/N 671052, sold separately). If upgrading from systems using the discontinued coupler (P/N 67105), ensure you purchase the correct replacement.
Rated at 2 amps, these motors are fully compatible with all Sherline CNC machines, including complete CNC systems, our 4-axis driver box, CNC rotary tables and our linear and rotary motion controllers. No additional power supply upgrades are needed.
Dual-shaft design allows handwheel operation for manual control. Flats are precision-ground on both ends to secure handwheels and couplers via set screws. When used with Sherline motor mounts, the shaft end engaging the coupler must have a flat to prevent damage from the set screw. This may not be necessary in non-Sherline applications.
Each motor includes a six-lead cable with a 5-pin connector, pre-wired to interface seamlessly with Sherline's CNC equipment, making setup fast and easy - just plug in and go.
Stepper Motor
Sherline stepper motors feature shafts at both ends, allowing for manual control via a handwheel, if desired. Flats are ground onto each shaft to accommodate set screws for the handwheel and coupling. For use with a Sherline motor mount, ensure that the shaft entering the coupling has a flat machined or ground onto it where the set screw secures it. Failure to do so may damage the shaft, making the coupling difficult to remove. For non-Sherline applications, the flat may not be necessary.
Powerful Dual-Shaft Motors
-
P/N 67127: This motor comes pre-wired with six leads in a connector that plugs directly into Sherline's linear or rotary controllers. Both our CNC system and driver box include four pre-wired cables with 5-pin plugs that match the P/N 67127 stepper motor. Simply plug each stepper motor into the corresponding axis cable for an easy setup.
-
P/N 67130: This motor features six raw wire leads, and does not include a connector, so that it can be used with non-Sherline controllers that have a different pin configuration.
Note: Due to the lack of standardization in the industry, wire colors can vary between suppliers. If using a connector not supplied by Sherline we recommend using a continuity checker to identify which wire connects to each pin on the DIN plug. Typically, the black and white (or tan) wires are connected to the center pins, but other colors may vary. See our specifications sheet for wiring diagram.

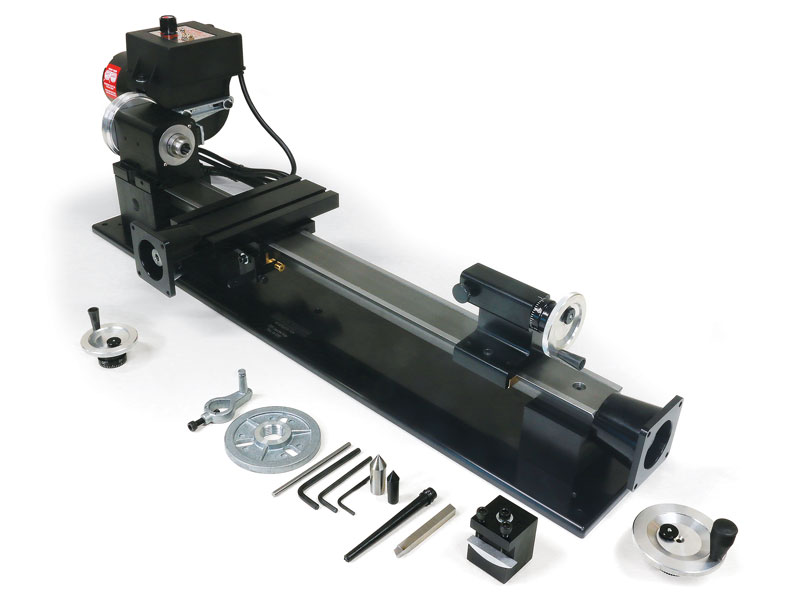

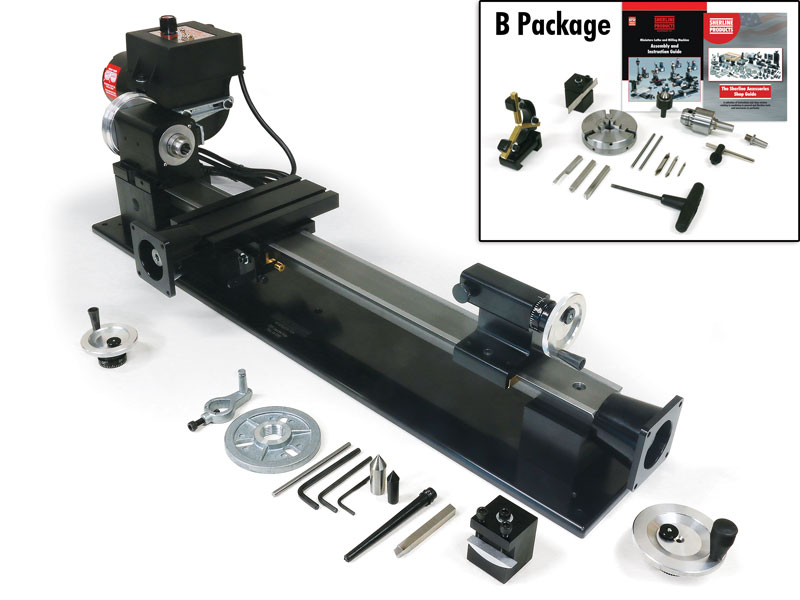

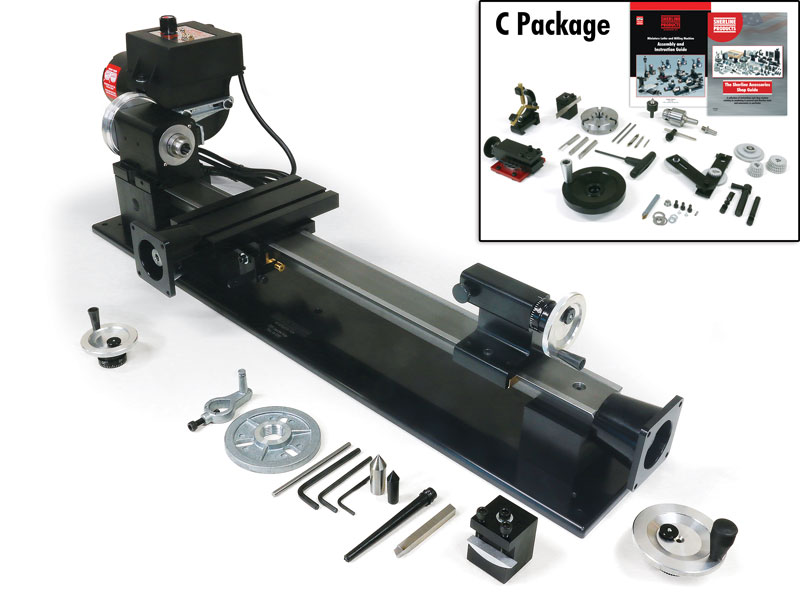

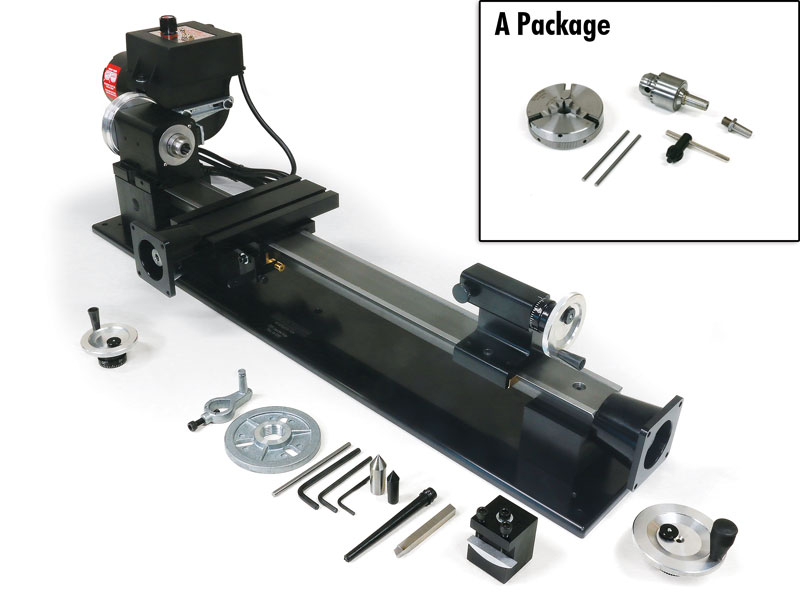

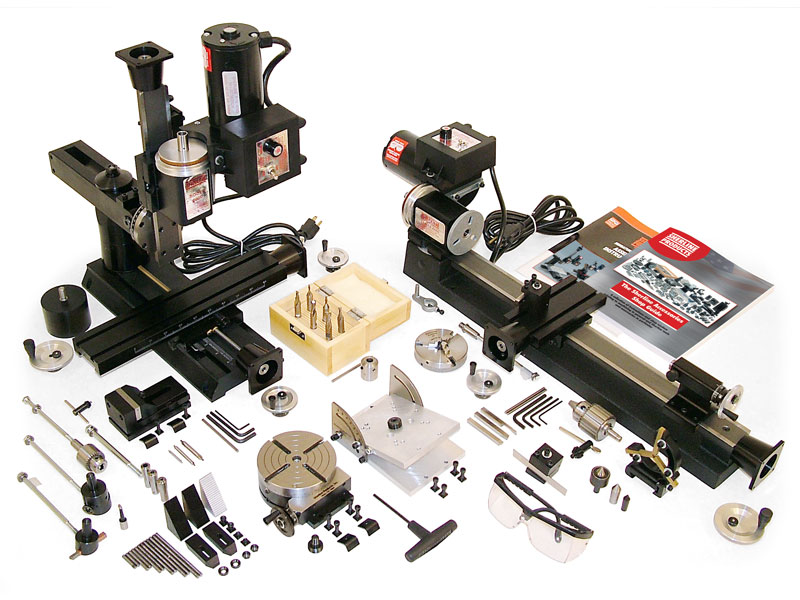

17″ Benchtop Lathe Package C – CNC Ready
10″ Tabletop Mill – CNC-Ready
10″ Tabletop Mill Package A – CNC-Ready
12″ CNC-Ready Mill
Our CNC-ready tabletop mill is ideal for customers seeking a compact CNC milling solution for producing small, precision parts. Made in the USA and backed by exceptional customer service, this mill offers full-size machine accuracy in a desktop footprint. Despite its size, it’s capable of cutting wood, plastic, aluminum, and even steel with impressive rigidity and precision.
CNC-ready mills come with factory-installed stepper motor mounts in place of handwheels and are ready for you to add your own stepper motors and CNC controls. Please note: these are not turn-key systems and cannot be operated until motors and controls are installed. CNC-ready machines do not include stepper motors, a computer, or CNC software.
Sherline recommends dual-shaft stepper motors so manual control is still possible using the included handwheels, which mount to the rear shaft once the motors are installed. Sherline also offers high-quality stepper motors and CNC components to complete your system.
Additionally, you can explore various aftermarket suppliers for compatible motors, drivers, and software. Visit our CNC Dealers page for a list of suppliers and links to their websites.
Note on Ordering a Metric Mill – Most Sherline cutting tool, such as center drills, are offered in fractional sizes. If you opt for a metric machine with metric collets or holders, you’ll need to order compatible fractional-size holders to use these tools effectively.
Standard Equipment for the 12″ Deluxe Tabletop Mill
- A powerful 90V DC motor with electronic speed controller
- 12″ base with laser-engraved scales
- Brass leadscrew cover that keeps chips off the rear of the Y-axis leadscrew
- 2.75″ (70 mm) x 13.0″ (330 mm) table with laser-engraved scales and two T-slots
- 1.235″ headstock spacer block
- Resettable, zero-adjustable handwheels that can be mounted to the end of the stepper motors to maintain manual control when needed:
- (2) 2″ (51 mm) handwheels on X- and Y-axes
- (1) 2-1/2″ (63 mm) handwheel on Z-axis
- All with laser-engraved aluminum collars
- NOTE: CNC-ready machines cannot be operated manually unless double-shaft stepper motors are installed.
- ¼” Drill Chuck w/ key, #1 Morse arbor with drawbolt
- Pulleys, drive belt, three hexagonal keys, spindle bars, gib removal tool, eight-foot three-wire power cord, and instruction manual
- Oil reservoirs on the X/Y axes and the Z axis help keep critical parts lubricated. These were initially developed for CNC machines that run constantly for hours on end but can benefit manual machines as well
14″ CNC-Ready Mill
The 8-Direction CNC-Ready Milling Machine is one of the most versatile mills Sherline offers. In addition to standard X-, Y-, and Z-axis movement, this model provides five additional directions of headstock adjustment—allowing you to position the spindle for drilling or milling operations from nearly any angle.
- The headstock pivots up to 90° left or right.
- The column bed also rotates side to side up to 90°, enabling angled drilling.
- A specialized knuckle joint allows the column to tilt front to back.
- The ram-style column base can swing side to side up to 90°, offering even greater flexibility.
- Loosening the column cap lets the ram move in and out, providing over 5.5″ of additional travel.
With this wide range of movement, the machining possibilities are nearly limitless within the compact work envelope of the machine. The 14″ base also increases Y-axis travel by 2″ compared to the Model 5400 mill, making it a powerful tool for advanced miniature machining applications.
The 8-Direction benchtop mill is ideal for users who need a small, precision milling machine capable of high-accuracy work. Like all Sherline mills, it is made in the USA and supported by unmatched customer service. Despite its compact size, this 14″ benchtop mill is engineered to handle wood, plastic, aluminum, and even steel—delivering full-size machine precision in a desktop footprint.
CNC-ready mills come with factory-installed stepper motor mounts in place of handwheels and are ready for you to add your own stepper motors and CNC controls. Please note: these are not turn-key systems and cannot be operated until motors and controls are installed. CNC-ready machines do not include stepper motors, a computer, or CNC software.
Sherline recommends dual-shaft stepper motors so manual control is still possible using the included handwheels, which mount to the rear shaft once the motors are installed. Sherline also offers high-quality stepper motors and CNC components to complete your system.
Additionally, you can explore various aftermarket suppliers for compatible motors, drivers, and software. Visit our CNC Dealers page for a list of suppliers and links to their websites.
Note on Ordering a Metric Mill – Most Sherline cutting tool, such as center drills, are offered in fractional sizes. If you opt for a metric machine with metric collets or holders, you’ll need to order compatible fractional-size holders to use these tools effectively.
Standard Equipment for the 14″ 8-Direction Tabletop Mill
- A powerful 90V DC motor with electronic speed controller
- 14″ base with laser-engraved scales
- Brass leadscrew cover that keeps chips off the rear of the Y-axis leadscrew
- 2.75″ (70 mm) x 13.0″ (330 mm) table with laser-engraved scales and two T-slots
- 2" column riser block
- Resettable, zero-adjustable handwheels that can be mounted to the end of the stepper motors to maintain manual control when needed:
- (2) 2″ (51 mm) handwheels on X- and Y-axes
- (1) 2-1/2″ (63 mm) handwheel on Z-axis
- All with laser-engraved aluminum collars
- NOTE: CNC-ready machines cannot be operated manually unless double-shaft stepper motors are installed.
- ¼” Drill Chuck w/ key, #1 Morse arbor with drawbolt
- Pulleys, drive belt, three hexagonal keys, spindle bars, gib removal tool, eight-foot three-wire power cord, and instruction manual
- Oil reservoirs on the X/Y axes and the Z axis help keep critical parts lubricated. These were initially developed for CNC machines that run constantly for hours on end but can benefit manual machines as well
18″ CNC-Ready Mill
The Sherline NexGen Benchtop Mill is the largest vertical milling machine we offer. As Sherline mills have become increasingly popular in industrial, laboratory, and educational settings, the need for a larger-capacity mill led to the development of the NexGen model. This benchtop mill features an expanded mill base, a longer crosslide table, and an extended column—providing greater work area and capability than our Deluxe 8-Direction Benchtop Mill (Series 2000/2100).
To fully support the extended travel of the column, we’ve increased the cross-section of the column base for added rigidity. To further improve stability during heavy cuts, the column arm no longer swings side to side. However, you still retain full flexibility with 90° rotation to the left and right, as well as in-and-out column movement—giving the NexGen mill a total of seven directions of adjustment, including X, Y, Z, and headstock rotation.
The NexGen mill is ideal for customers seeking a compact, high-precision mini mill for small parts. All Sherline milling machines are made in the USA and backed by exceptional customer support. Despite its small footprint, this 18″ benchtop mill delivers full-size machining accuracy. It’s capable of cutting wood, plastic, aluminum, and even steel with precision and rigidity.
CNC-ready mills come with factory-installed stepper motor mounts in place of handwheels and are ready for you to add your own stepper motors and CNC controls. Please note: these are not turn-key systems and cannot be operated until motors and controls are installed. CNC-ready machines do not include stepper motors, a computer, or CNC software.
Sherline recommends dual-shaft stepper motors so manual control is still possible using the included handwheels, which mount to the rear shaft once the motors are installed. Sherline also offers high-quality stepper motors and CNC components to complete your system.
Additionally, you can explore various aftermarket suppliers for compatible motors, drivers, and software. Visit our CNC Dealers page for a list of suppliers and links to their websites.
Note on Ordering a Metric Mill – Most Sherline cutting tool, such as center drills, are offered in fractional sizes. If you opt for a metric machine with metric collets or holders, you’ll need to order compatible fractional-size holders to use these tools effectively.
Standard Equipment for the 18″ NexGen Tabletop Mill
- A powerful 90V DC motor with electronic speed controller
- 18″ mill base with Y-axis leadscrew protection
- 2.75″ (70 mm) × 18.0″ (457 mm) extended mill table with two T-slots
- 7″ × 13″ tooling plate
- 15″ (63 mm) extended column bed
- Extra-rigid column base
- Resettable, zero-adjustable handwheels that can be mounted to the end of the stepper motors to maintain manual control when needed:
- (2) 2″ (51 mm) handwheels on X- and Y-axes
- (1) 2-1/2″ (63 mm) handwheel on Z-axis
- All with laser-engraved aluminum collars
- NOTE: CNC-ready machines cannot be operated manually unless double-shaft stepper motors are installed.
- ¼” Drill Chuck w/ key, #1 Morse arbor with drawbolt
- Pulleys, drive belt, three hexagonal keys, spindle bars, gib removal tool, eight-foot three-wire power cord, and instruction manual
- Oil reservoirs on the X/Y axes and the Z axis help keep critical parts lubricated. These were initially developed for CNC machines that run constantly for hours on end but can benefit manual machines as well
Stepper Motor Spindle Mount Kit
