12″ Mill with DRO

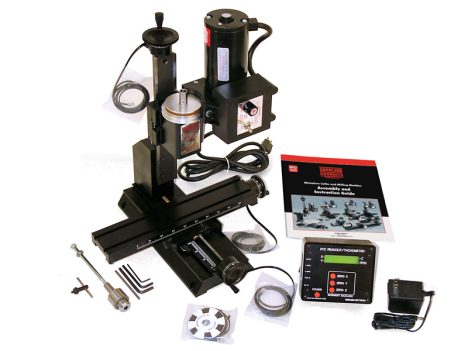

Our 12″ DRO Benchtop Mill includes a digital readout box and specialized handwheels with built-in electronic encoders that replace the standard handwheels (standard handwheels are not included with the DRO option). These DRO handwheels interface with the readout box, which translates handwheel movement into precise digital readings for all three axes. Each axis can be zeroed at any time with the push of a button, and the DRO continuously displays spindle RPM whenever the motor is running. The readout is compatible with both inch and metric machines.

This compact DRO mill is ideal for customers who need a small-format machine capable of producing highly accurate, precision parts. Proudly made in the USA, all our mills are backed by exceptional customer support. Despite its desktop size, this machine delivers full-size performance—capable of cutting wood, plastic, aluminum, and even steel with excellent rigidity and accuracy.

Using the DRO System

The DRO displays each axis position relative to a zero point you set.

  • Inch models show position to 0.0005″ (three and a half decimal places)
  • Metric models show position to 0.01 mm

The system supports both ball screw and leadscrew machines. As well as the ability to use Metric DROs on inch machines or inch DROs on metric machines. It features six selectable modes based on machine type (mill or lathe), screw type (leadscrew or ball screw), and preferred display units (inch or metric). For setup instructions, refer to the official DRO Mode Instructions.

You can electronically compensate for backlash by inputting the measured backlash value for each axis. When the direction of handwheel rotation reverses, the DRO subtracts the backlash before updating the position—eliminating common errors and making it easier to track travel distance and direction. The power supply automatically switches between 120V and 240V, making it suitable for use in countries with 220–240V electrical current. A socket adapter may be required outside North America.

Notes on Ordering a Metric Mill – Most of our cutting tools, such as center drills, are manufactured in fractional sizes. If you’re using a metric machine with metric collets or end mill holders, you’ll need to order fractional holders to fit these tools.

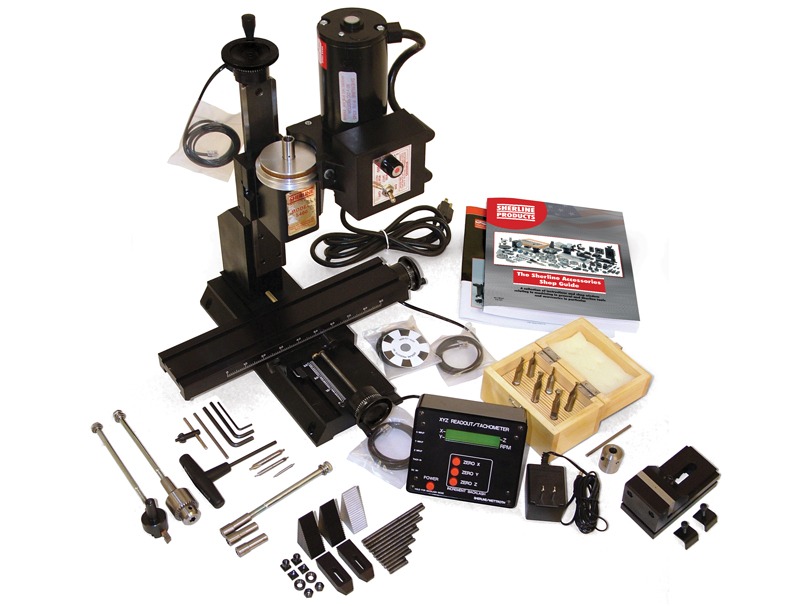

Standard Equipment for the 12″ Benchtop Mill
  • Powerful 90V DC motor with electronic speed control
  • 12″ base with laser-engraved scales
  • Brass leadscrew cover that keeps chips off the rear of the Y-axis leadscrew
  • 2.75″ (70 mm) x 13.0″ (330 mm) table with laser-engraved scales and two T-slots
  • 1.235″ headstock spacer block
  • Digital readout box with LCD display, RPM sensor, power supply, cables, stand, and all necessary mounting hardware. No hole drilling is required to mount.
  • DRO handwheels that can be reset to zero electronically with the push of a button on the DRO display box.
    • (2) 2″ (51 mm) DRO handwheels on X- and Y-axes
    • (1) 2-1/2″ (63 mm) DRO handwheel on Z-axis
    • All with laser-engraved aluminum collars
  • ¼” Drill Chuck w/ key, #1 Morse arbor with drawbolt
  • Pulleys, drive belt, three hexagonal keys, spindle bars, gib removal tool, eight-foot three-wire power cord, and instruction manual
  • Oil reservoirs on the X/Y axes and the Z axis help keep critical parts lubricated. These were initially developed for CNC machines that run constantly for hours on end but can benefit manual machines as well

Clear selection

-

SKU: N/A Category: Tags: ,

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.

Download PDF Assembly and Instruction Guide

Instructions PDF Download

Download PDF DRO Instructions

Instructions PDF Download

Download PDF DRO Mode Instructions

Instructions PDF Download

Download PDF 10″ Mill Base Dimensions

Instructions PDF Download

Download PDF 5000/5400 Mill Column Base Dimensions

Instructions PDF Download

Download PDF Mill Saddle Lubrication instructions

Instructions PDF Download

Max clearance
(table to spindle)
8.00″ (203 mm)
Throat
(no spacer)
Optional
Throat
(w/ headstock spacer)
Adjustable
Travel, “X” Axis8.65″ (220 mm)
Travel, “Y” Axis5.00″ (127 mm)
Travel, “Z” Axis6.25″ (159 mm)
Hole through spindle.405″ (10 mm)
Spindle nose thread3/4″-16 T.P.I.
Spindle nose taper#1 Morse
Spindle runout of Morse taper.0005″ or less
Handwheel graduations.001″ (.01 mm)
Electronically controlled spindle speed range70 to 2800 RPM
Width Overall*15.00″ (381 mm)
Depth Overall*Base footprint: 14″ (355.5 mm); With fully extended brass leadscrew cover: 16.875″ (428.5 mm)
Height Overall (Max.)*20.75″ (527 mm)
Table size2.75″ x 13.00″ (70 x 330 mm)
Hold-down provision2 T-Slots
Shipping Weight43 lb. (19.50 kg)
Movements in addition
to X-, Y- and Z-axes
Headstock rotation (90° left/right)
Motor90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz.

Click here for motor specifications
Spindle Speed Range70-2800 RPM continuously variable by electronic speed control

*Overall dimensions include motor and speed control

Click on the link for the exploded view of the 5000 and 5400 Series Manual Mills to help identify replacement parts.

If you are still uncertain please call our customer service representatives for help with this item.

5000 (5100) Mill5400 (5410) Mill5800 NexGen Mill
5000 (5100)5400 (5410)2000 (2010)5800 (5810)
Max. clearance
(table to spindle)
8.00″ (203 mm)8.00″ (203 mm)9.00″ (229 mm)14.00″ (356 mm)
Throat (no spacer)2.25″ (50 mm)2.25″ (50 mm)AdjustableAdjustable
Throat (w/ headstock spacer)Optional3.50″ (90 mm)AdjustableAdjustable
Travel: X-axis (with stop)8.65″ (220 mm)8.65″ (220 mm)8.65″ (220 mm)13.65″ (347 mm)
Travel: Y-axis3.00″ (76 mm)5.00″ (127 mm)7.00″ (178 mm)11.00″ (279 mm)
Travel: Z-axis6.25″ (159 mm)6.25″ (159 mm)5.38″ (137 mm)9.38″ (238 mm)
Hole through spindle.405″ (10 mm).405″ (10 mm).405″ (10 mm).405″ (10 mm)
Spindle nose thread3/4-16 T.P.I.3/4-16 T.P.I.3/4-16 T.P.I.3/4-16 T.P.I.
Spindle nose taper#1 Morse#1 Morse#1 Morse#1 Morse
Spindle runout of Morse taper.0005″ or less.0005″ or less.0005″ or less.0005″ or less
Handwheel graduations.001″ (.01 mm).001″ (.01 mm).001″ (.01 mm).001″ (.01 mm)
Handwheel TypeStandard HandwheelsZero Adjustable Handwheels (With the exception of DRO machines which come with DRO handwheels)Zero Adjustable Handwheels (With the exception of DRO machines which come with DRO handwheels)Zero Adjustable Handwheels (With the exception of DRO machines which come with DRO handwheels)
Electronically controlled
spindle speed range
70 to 2800 RPM70 to 2800 RPM70 to 2800 RPM70 to 2800 RPM
Width overall14.75″ (375 mm15.00″ (381 mm)15.00″ (381 mm)20.00 (508 mm)
Depth overall11.75″ (298 mm)14.00″ (356 mm)22.25″ (565 mm)23.13″ (588 mm)
Height overall (Max.)20.75″ (527 mm)20.75″ (527 mm)23.38″ (568 mm)24.50″ (622 mm)
Table size2.75″ x 13.00″
(70 mm x 330 mm)
2.75″ x 13.00″
(70 mm x 330 mm)
2.75″ x 13.00″
(70 mm x 330 mm)
2.75″ x 18.00″
(70 x 457 mm)
Hold-down provision2 T-slots2 T-slots2 T-slots3 T-slots
Shipping weight33 lb (15.0 kg)36 lb (16.3 kg)38 lb (17.2 kg)50 lb. (22.7 kg)
Movements in addition
to X-, Y- and Z-axes
Headstock rotation
(90° L/R)
Headstock rotation
(90° L/R)
Headstock rotation
(90° L/R)
Headstock rotation
(90° L/R)
Column rotationN/AN/A(90° L/R)N/A
Column pivotN/AN/A(90° Fwd/Bk)(90° Fwd/Bk)
Column swingN/AN/A(90°L/R)(90°L/R)
Column travelN/AN/A(In/Out) 5.5″ (140 mm)(In/Out) 5.5″ (140 mm)
Motor Specs
Input voltage100 to 240 VAC, 50 or 60 Hz
Output to motor90 VDC
Current draw.5 to 15 amps depending on load
No-load output shaft speed6000 RPM (no pulley)
Click here for more detailed specs
Spindle Specs
Spindle End play (factory
adjustment of preload)
.0002″ (.005 mm) or less, normal pulleys
Runout at nose.0005″ (0.013 mm) or less
BearingsTwo 20 mm lifetime lubricated ball bearings with adjustable preload
