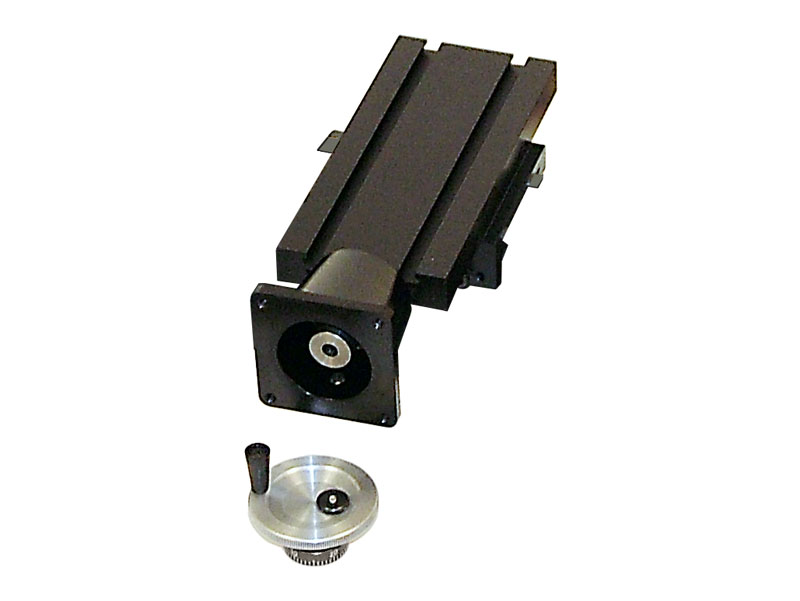

6″ Deluxe Lathe Crosslide and Saddle Assembly – CNC Ready

With 2″ Zero Adjustable Handwheel

Part No.	Description	Quantity
12050	8-32 x 3/8″ SHCS	3
32140	10-32 x 1/2″ Cup Point Set Screw	1
3420 3430	2″ Y-Axis Zero Handwheel (Inch) 2″ Y-Axis Zero Handwheel (Metric)	1
40330	10-32 x 5/8″ SHCS	1
40520	10-32 x 3/16″ Cup PT Set Screw	1
40600	10-32 x 1/4″ Flat Point Set Screw	3
40890 41890	Slide Screw Insert (Inch) Slide Screw Insert (Metric)	1
40820	Gib Lock	2
40910	Lathe Saddle	1
40980	Crosslide Gib	1
40990	Saddle Gib	1
44211 44221	6.5″ Slide Screw (Inch) 6.5″ Slide Screw (Metric)	1
50130L 51130L	Lathe Anti Backlash Nut (Inch) Lathe Anti Backlash Nut (Metric)	1
50150	Anti-Backlash Lock	1
50211	8-32 x 1/4″ Button Socket Screw	1
67101	Stepper Motor Mount	1
67035	6″ Crosslide	1
671052	CNC Coupling	1
67106 67108	RH Coupling Preload Nut (course) (Inch) RH Coupling Preload Nut (course) (Metric)	1
67111	8-32 x 7/8″ SHCS	2
67115	5-40 x 7/8″ SHCS	1
67120	Stepper Motor Preload Bearing	2
