2-Axis Lathe DRO without Readout Box

Select the inch/metric option to match the DRO handhweels to your machine’s leadscrew pitch. All ball screw machines use a metric pitch.

Clear selection

  • *Select machine screw type

    Reset options

-

SKU: N/A Categories: ,

Product Description

This kit was developed for those who already have a digital readout installed on their mill and wish to add a DRO to their lathe without duplicating the electronics box. This cost-saving measure allows you to switch the box back and forth between the lathe and mill.

NOTE: The DRO can be ordered on any new machine as a factory installed option. The digital readout handwheels replace the standard handwheels that would normally come with the machine. If you purchase a machine with factory installed DRO, the regular handwheels are not included. If you purchase the DRO as a separate option and install it yourself, you will have the stock handwheels left over.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.

Download PDF 8200 Instructions

Instructions PDF Download

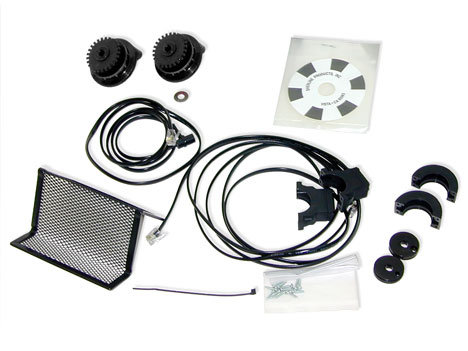

813202″ DRO X-Axis Handwheel (metric 81322)
813402.5″ DRO Y-Axis Handwheel (metric 81342)
81100Encoder Units (Tested) w/Cable
81300DRO X/Y-Axis Thrust Collar
81508DRO Lead Screw Thrust
81500DRO Tachometer Encoder w/Cable
815106-pulse DRO Tachometer Pickup Decal (leadscrew machines only)
680605-pulse DRO Tachometer Pickup Decal (ball screw machines only)
81080Black Tie 4″ Wrap

DRO Handwheel Installation
