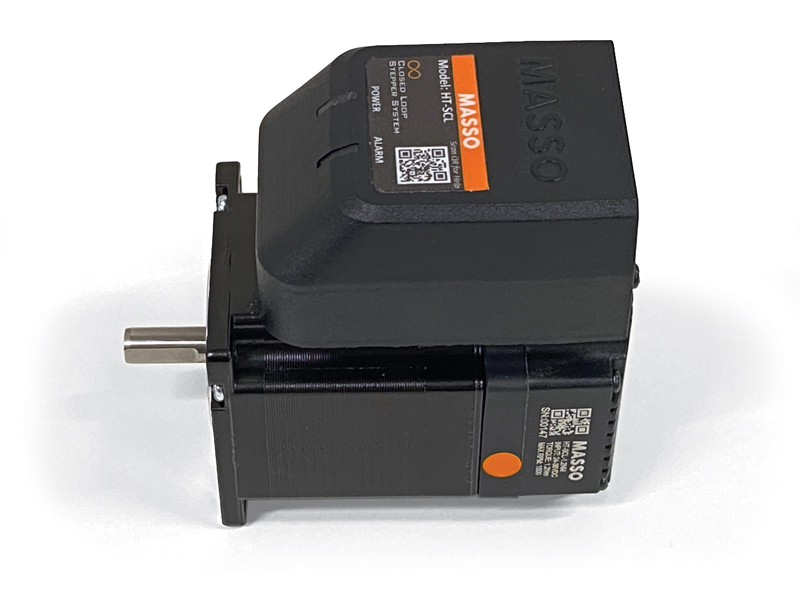

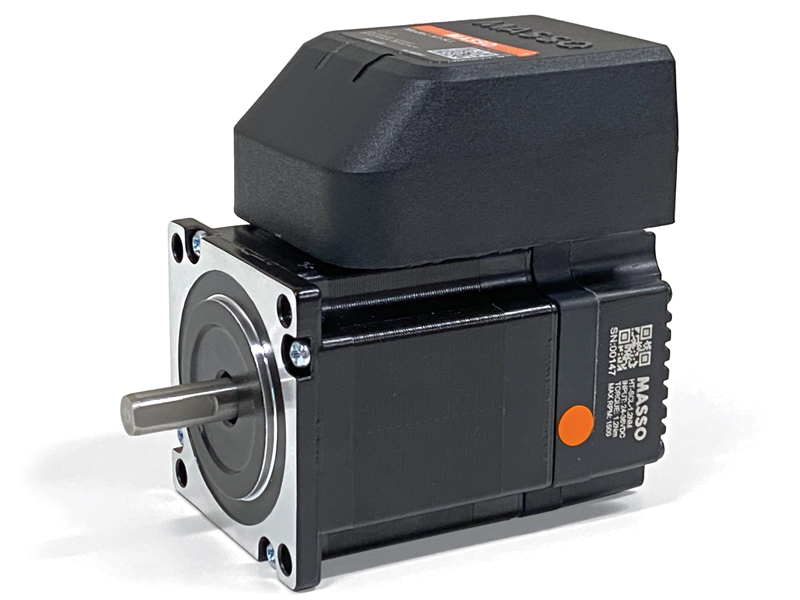

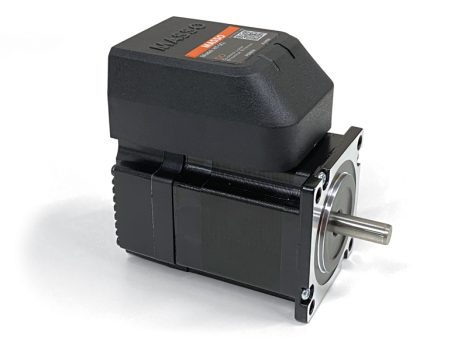

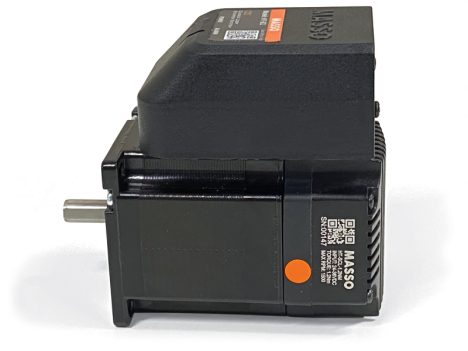

36V Closed-Loop Stepper Motor

The 36V stepper motor is a closed-loop motor with an integrated driver, housed in the same NEMA 23 frame as our standard stepper motor. It features built-in LED indicators that display both power and alarm status for easy monitoring.

⚠️ NOTE: The 36V closed-loop stepper motors are sold only as replacement parts for Sherline Accu-Pro machines. They are not available as upgrade components for pre-existing systems.

-

SKU: 87140 Categories: , Tag:

Product Description



warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.

Download PDF Sherline/MASSO 36V Closed-Loop Stepper Motor Specifications
Instructions PDF Download

Frame sizeNEMA #23
Shaft8mm (.315″)
Maximum Torque1.2 N.m (Newton meters)
12.236 kg-cm (kilogram centimeter)
169.934 oz/in (ounce inch)
10.62 in/lb (inch pound)
Maximum RPM530 RPM
Input Voltage36V DC
Output Current4.5A 20 KHz PWM
Current2 A
Step Angle.9° (400 steps/rev)
Pulses/Revolution800

Download PDF Sherline/MASSO 36V Closed-Loop Stepper Motor Specifications
Instructions PDF Download
