| Part No. | Description | Quantity |
|---|---|---|
| 32100 | 10-32 Hex Nut | 1 |
| 35630 | 1/4″ x 1″ Dowel Pin | 1 |
| 40340 | 10-32 x 1″ SHCS | 1 |
| 40740 | 10-32 x 7/8″ SHCS | 1 |
| 42060 | Handwheel Knob | 1 |
| 88066 | 1/4-20 Hex Nut | 1 |
| 88254 | Alignment Collar “Locating Pin” | 1 |
| 88264 | Bar Feeder Stand “Front Top-Mount” | 1 |
| 88265 | 1/4″ x 1-1/4″ Dowel Pin | 1 |
| 88266 | High-Torque Ball-Nose Spring Plunger | 1 |
| 88268 | Bar Feeder Stand “Front Top-Mount Clamp” | 1 |
| 88271 | 3/4-16 x 1.75″ Threaded Adjustment Rod (Chucker Lathe) | 1 |
| 88272 | 3/4-16 x 2.25″ Threaded Adjustment Rod (Ball Screw Lathe) | 1 |
Back to Bar Feeder
Bar Feeder Front-Mount Assembly

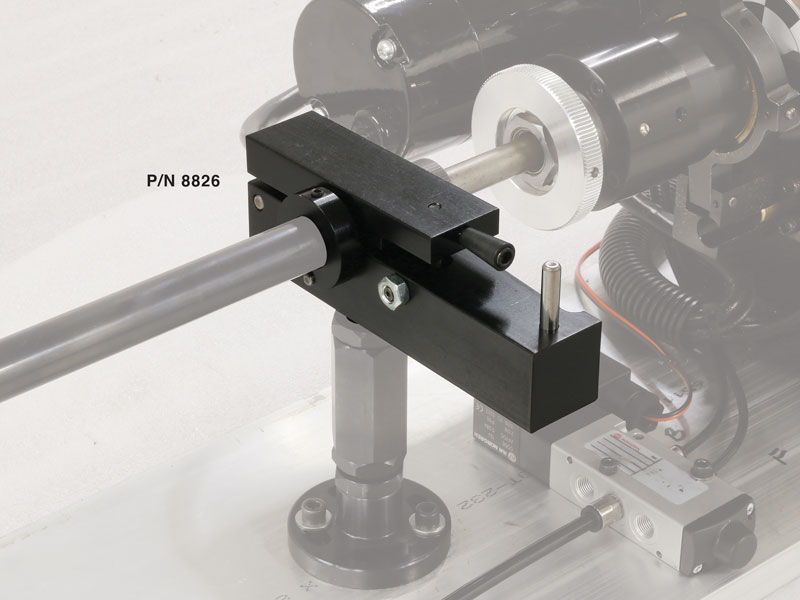

The Bar Feeder Front-Mount assembly aligns the bar feeder tube with your chucker lathe or ball screw lathe and also holds the bar feeder tube in place when in use between bar stock changes.
NOTE: Select your machine option in the drop-down menu above. The Bar Feeder Front-Mount assembly for the Ball Screw Lathe has the mounting hole offset so the brass cover tube will not hit it.
-
Related products
Pneumatic Bar Feeder
Streamline your machining process with the Sherline Pneumatic Bar Feeder. Designed for use with our CNC lathes, this feeder ensures consistent material delivery, improving efficiency and productivity in automated machining tasks.
Pneumatic Bar Feeder Activation Cylinder Assembly
We’ve separated the Bar Feeder into two components to better support customers who want to build their own custom bar feeder system.
Beyond its use in a bar feeder setup, this assembly can also function as a programmable collet control for opening and closing the collet. You can use M10 and M11 G-code commands to close and open the chuck, respectively.
The Pneumatic Bar Feeder Activation Cylinder Assembly works with our machine and 3C lever collet closer to pneumatically open and close the collet. Click the “Instructions” tab above to download setup documentation.
NOTE: This system is designed for use with the MASSO Touch controller featuring the G3 board. The older G2 board is not compatible with the required MASSO relay module. If you are using a control system other than the MASSO Touch, please consult your controller manufacturer for wiring diagrams and compatibility. Most modern CNC controllers are designed to send relay signals to control external devices.
