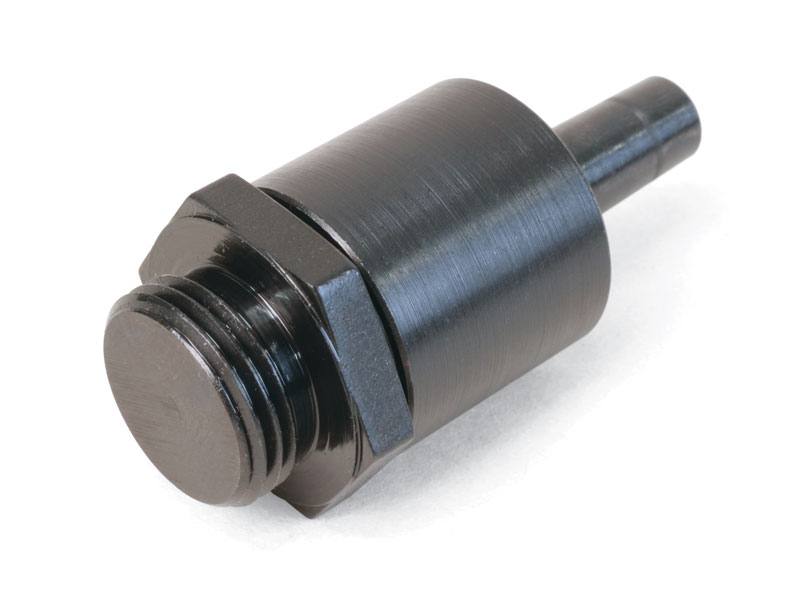

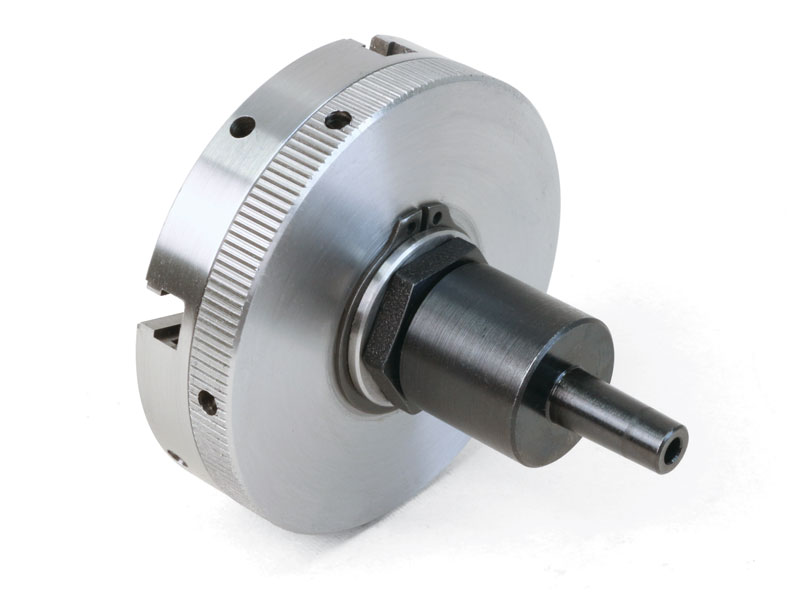

This tailstock live center has a 3/4-16 adapter to hold a 3-jaw or 4-jaw chuck. This live center is used in industrial winding operations, and has a runout of .003″.
Back to Tailstock Tools
Live Center to 3/4-16 Chuck Arbor with #1 Taper
Chuck not included
-
| Part No. | Description | Quantity |
|---|---|---|
| 10930 | 3/8″ bearings | 2 |
| 11824 | Shim washer | 1 |
| 11905 | 3/4-16″ Chuck adapter for live tailstock body | 1 |
| 11915 | Chuck adapter live tailstock body | 1 |
