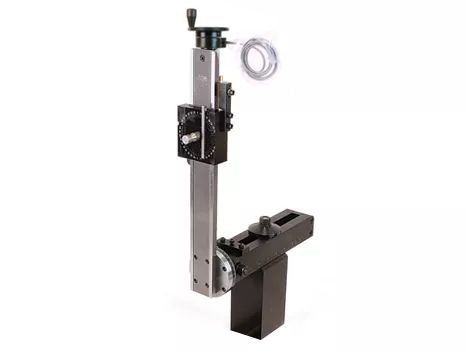

NexGen Mill Column – DRO
NOTE: This column is only compatible with mill XY bases, for lathe columns please click here
-
| Part No. | Description | Quantity |
|---|---|---|
| 34060 | Thrust Bearing Set | 1 |
| 35160 | Graduated Clamping Ring | 1 |
| 35170 | Movable Clamp Disk | 1 |
| 40175 41175 | Saddle Locking Lever (Inch) Saddle Locking Lever (Metric) | 1 |
| 40176 | Saddle Travel Extension w/Screws | 1 |
| 40177OL 41177OL | Saddle Nut with Oiler (Inch) Saddle Nut with Oiler (Metric) | 1 |
| 40260 | Head Key | 1 |
| 40330 | 10-32 x 5/8″ SHCS | 4 |
| 40340 | 10-32 x 1″ SHCS | 1 |
| 40600 | 10-32 x 1/4″ Flat Point Set Screw | 1 |
| 40660 | #10 Washer 3/16″ | 1 |
| 40670 | 10-32 x 1/2″ SHCS | 4 |
| 40690 | 10-32 x 3/4″ SHCS | 4 |
| 40740 | 10-32 x 7/8″ SHCS | 1 |
| 40820 | Gib Lock | 1 |
| 40900 | 10-32 x 3/8″ Flat Head Screw | 1 |
| 40990 | Saddle Gib | 1 |
| 45040 | Column Saddle | 1 |
| 45260 | 15″ Column Bed | 1 |
| 45270 45280 | 15″ Z Axis Screw (Inch) 15″ Z Axis Screw (Metric) | 1 |
| 50056 | Tall Rigid Square Mill Column Base | 1 |
| 50211 | 8-32 x 1/4″ Button Socket Screw | 1 |
| 50220 | 1/4-20 x 1-3/4″ SHCS | 4 |
| 50240 | Pivot Pin | 1 |
| 56130 | Arm Hold Down Bolt | 1 |
| 56200 | Arm Hold Down Washer | 1 |
| 56210 | 3/8-16 x 2″ Should Bolt | 1 |
| 56220 | Swing Arm – Left Side | 1 |
| 56230 | 3/8-16 Flange Nut | 2 |
| 56330 | Swing Arm – Right Side | 1 |
| 56350 | Column Adjustment Block | 1 |
| 56400 | Arm Spacer Block | 1 |
| 56440 | Arm Mount | 1 |
| 56450 | Index Tab | 1 |
| 56470 | 3/32″ x 1/2″ Dowel Pin | 1 |
| 76140 | 5/64″ Hex Key | 1 |
| 81100 | Encoder Unit with Cable | 1 |
| 81340 81342 | 2.5″ Z Axis DRO Handwheel (Inch) 2.5″ Z Axis DRO Handwheel (Metric) | 1 |
| 81350 | DRO Z Axis Thrust Collar | 1 |
