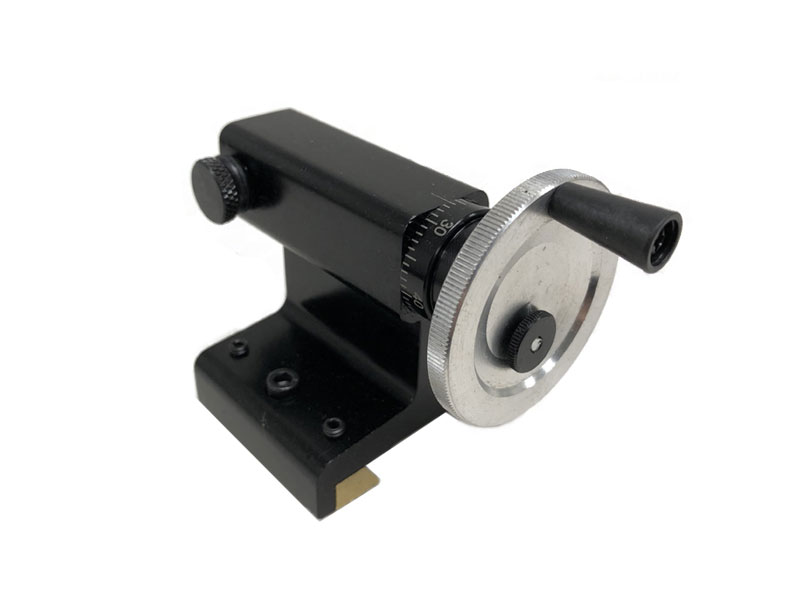

Tailstock Assembly w/ Zero Adjustable Handwheel
-
| Part No. | Description | Quantity |
|---|---|---|
| 3428 3429 | 2″ Zero Handwheel (Inch) 2″ Zero Handwheel (Metric) | 1 |
| 32140 | 10-32 x 1/2″ Cup Point Set Screw | 2 |
| 40111 | Tailstock Case | 1 |
| 40112 | Tailstock Gib | 1 |
| 40220 41220 | Feed Screw (Inch) Feed Screw (Metric) | 1 |
| 40270 41270 | Tailstock Spindle (Inch) Tailstock Spindle (Metric) | 1 |
| 40330 | 10-32 x 5/8″ SHCS | 1 |
| 40501 | 10-32 x 1/2″ Button Head Hex Screw | 2 |
| 40520 | 10-32 x 3/16″ Cup Point Set Screw | 1 |
| 40590 | 1/4″ Washer | 1 |
| 40860 | Tailstock Locking Screw Grommet | 1 |
| 40870 | Tailstock Spindle Locking Screw | 1 |
